Our core advantages:
1. Wide selection of sizes and models
2. Low loss and high temperature stability
3. Strong anti-interference capabilities and controllable directivity
4. Customizable products for customers
5. Strong simulation design capabilities and quick response to customer needs
Microwave Dielectric Ceramic Antenna Product Introduction:

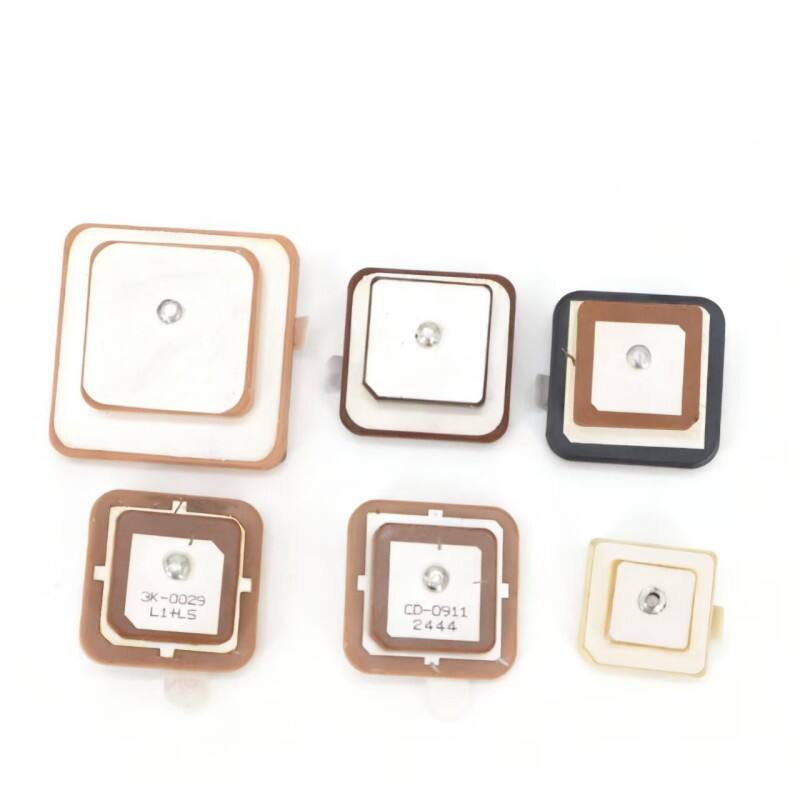

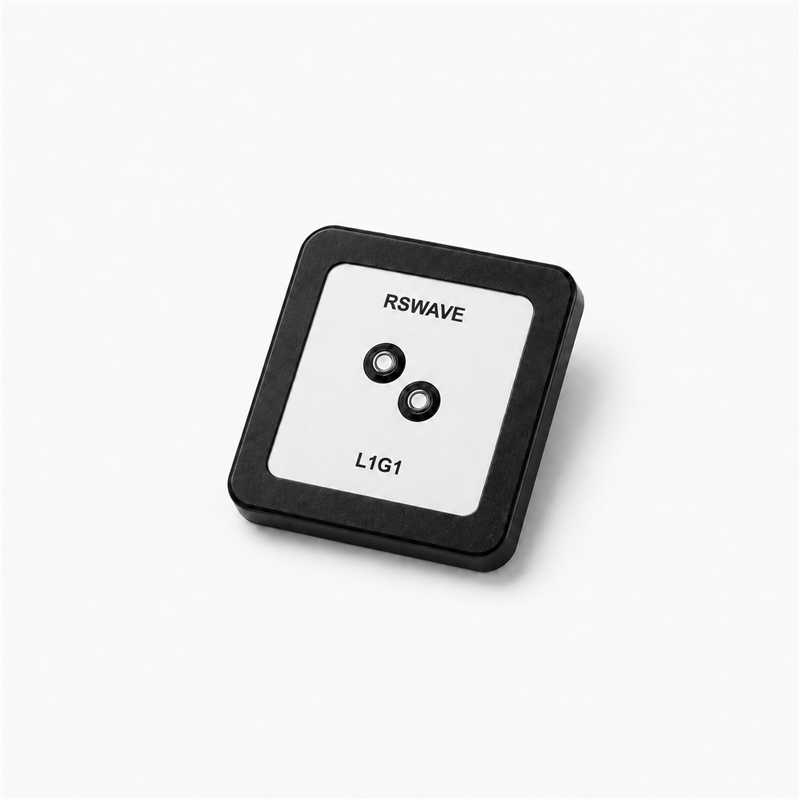

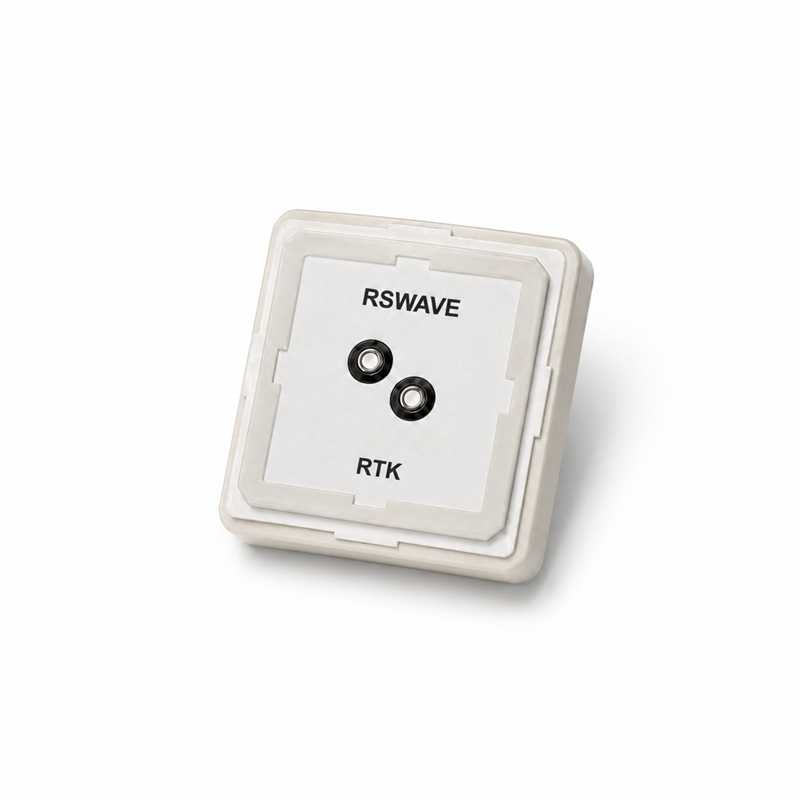

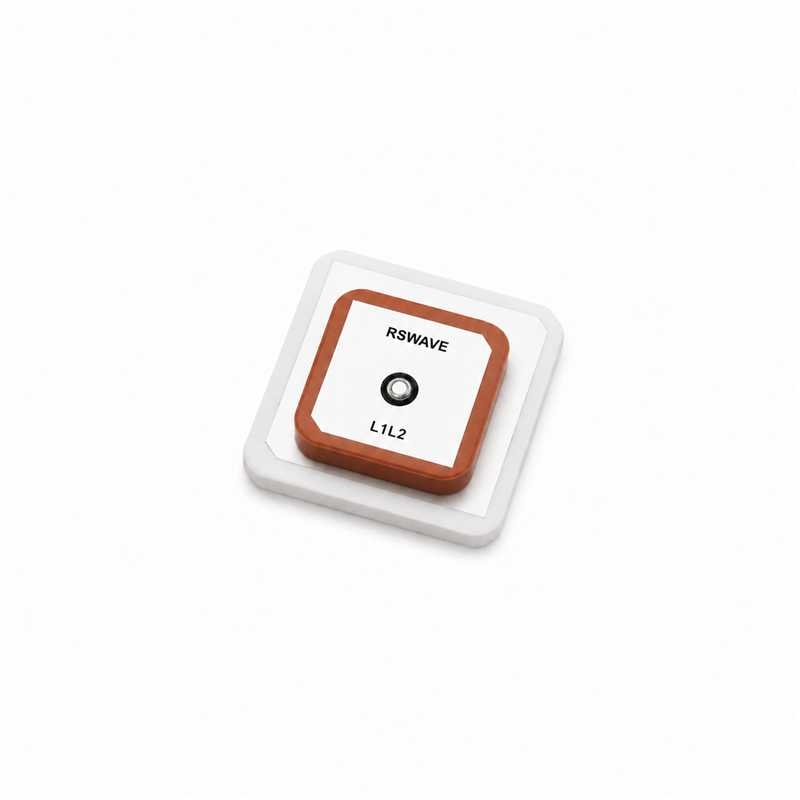

Microwave dielectric ceramic antennas are passive radio frequency radiating devices made using microwave ceramics with high dielectric constant, low loss, and near-zero temperature coefficient as the substrate, combined with surface metallization technology. They operate in the microwave to millimeter-wave frequency band and achieve efficient transmission and reception through dielectric resonant mode.
Microwave dielectric ceramic antennas are widely used in: 5G micro base stations, satellite communication terminals, microwave point-to-point equipment, radar T/R components, Internet of Things (NB-IoT/LoRa), vehicle-mounted millimeter-wave radar, and high-precision GNSS positioning modules.

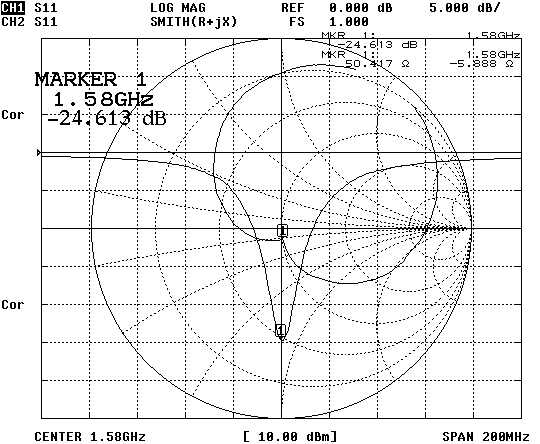

Technical parameters
| Part Number | Size | Center Frequency | -10dB Bandwidth | VSWR | Gain | Ground Plane | Applications |
| W*H*L(mm) | (MHz) | (MHz)min | max | (dBi)typ | (mm) | ||
| RS1575S8T2A | 8*8*2 | 1575.42/1610 | 4 | 2.0 | -7.0 | 20*20 | GPS/GLONASS/BDS/Galileo |
| RS1575S8T4A | 8*8*4 | 1575.42/1610 | 5 | 2.0 | -6.0 | 20*20 | GPS/GLONASS/BDS/Galileo |
| RS1575S10T2A | 10*10*2 | 1575.42/1610 | 4 | 2.0 | -6.0 | 20*20 | GPS/GLONASS/BDS/Galileo |
| RS1575S10T4A | 10*10*4 | 1575.42/1610 | 5 | 2.0 | -4.0 | 20*20 | GPS/GLONASS/BDS/Galileo |
| RS1575S12T2A | 12*12*2 | 1575.42/1610 | 6 | 2.0 | -5.0 | 20*20 | GPS/GLONASS/BDS/Galileo |
| RS1575S12T4A | 12*12*4 | 1575.42/1610 | 7 | 2.0 | -2.0 | 20*20 | GPS/GLONASS/BDS/Galileo |
| RS1575S15T2A | 15*15*2 | 1575.42/1610 | 7 | 2.0 | -3.0 | 30*30 | GPS/GLONASS/BDS/Galileo |
| RS1575S15T4A | 15*15*4 | 1575.42/1610 | 10 | 2.0 | 0.5 | 30*30 | GPS/GLONASS/BDS/Galileo |
| RS1575S18T2A | 18*18*2 | 1575.42/1610 | 10 | 2.0 | 1.0 | 50*50 | GPS/GLONASS/BDS/Galileo |
| RS1575S18T4A | 18*18*4 | 1575.42/1610 | 15 | 2.0 | 2.5 | 50*50 | GPS/GLONASS/BDS/Galileo |
| RS1575S20T2A | 20*20*2 | 1575.42/1610 | 10 | 2.0 | 1.5 | 50*50 | GPS/GLONASS/BDS/Galileo |
| RS1575S20T4A | 20*20*4 | 1575.42/1610 | 15 | 2.0 | 3.0 | 50*50 | GPS/GLONASS/BDS/Galileo |
| RS1575S25T2A | 25*25*2 | 1575.42/1610 | 14 | 2.0 | 3.0 | 70*70 | GPS/GLONASS/BDS/Galileo |
| RS1575S25T4A | 25*25*4 | 1575.42/1610 | 20 | 2.0 | 5.0 | 70*70 | GPS/GLONASS/BDS/Galileo |
| RS1575S35T4A | 35*35*4 | 1575.42/1610 | 25 | 2.0 | 5.5 | 70*70 | GPS/GLONASS/BDS/Galileo |

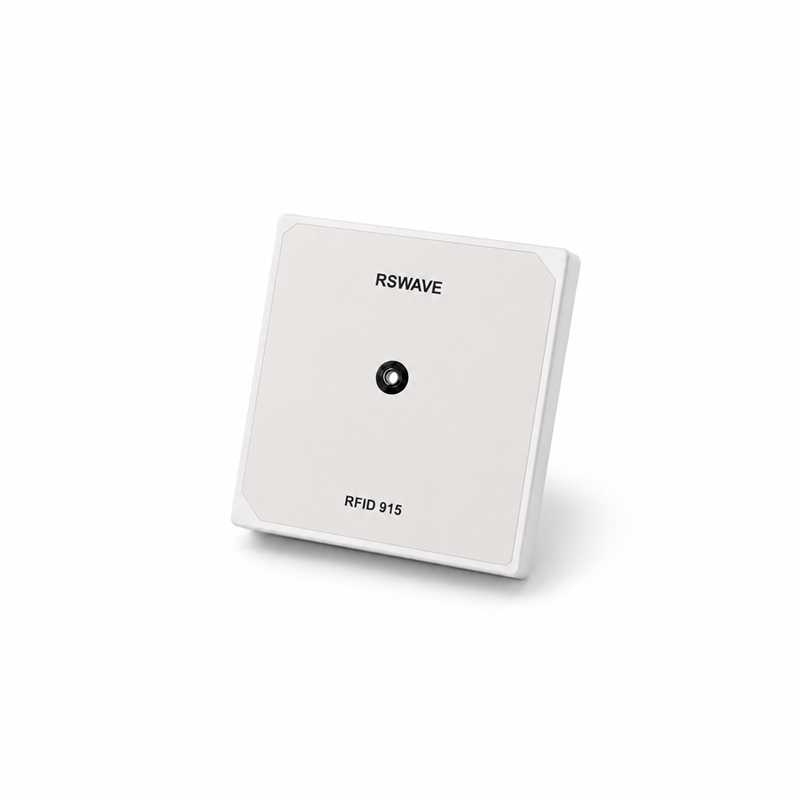

| RS915S25T4A | 25*25*4 | 902-928 | 2 | 2.0 | -2.0 | 70*70 | RFID、ETC and DSRC |
| RS915S35T4A | 35*35*4 | 902-928 | 3 | 2.0 | 0 | 70*70 | RFID、ETC and DSRC |
| RS915S40T4A | 40*40*4 | 902-928 | 5 | 2.0 | 1.0 | 70*70 | RFID、ETC and DSRC |
| RS915S61T4A | 61.5*61.5*4 | 902-928 | 8 | 2.0 | 3.0 | 70*70 | RFID、ETC and DSRC |
| RS915S78T4A | 78.5*78.5*4 | 902-928 | 26 | 2.0 | 4.0 | 100*100 | RFID、ETC and DSRC |
| RS2338S20T4A | 20*20*4 | 2338 | 120 | 2.0 | 7.0 | 70*70 | SDARS |
| RS2338S25T4A | 25*25*4 | 2338 | 56 | 2.0 | 6.5 | 70*70 | SDARS |
| RS2338S28T4A | 28*28*4 | 2338 | 56 | 2.0 | 5.0 | 70*70 | SDARS |
| RS2450S12T4A | 12*12*4 | 2450 | 30 | 2.0 | 5.0 | 50*50 | Bluetooth |
| RS2450S15T4A | 15*15*4 | 2450 | 40 | 2.0 | 5.0 | 50*50 | Bluetooth |
| RS2450S18T4A | 18*18*4 | 2450 | 50 | 2.0 | 5.5 | 70*70 | Bluetooth |
| RS2450S20T4A | 20*20*4 | 2450 | 60 | 2.0 | 6.0 | 70*70 | Bluetooth |
| RS2450S25T4A | 25*25*4 | 2450 | 90 | 2.0 | 6.5 | 70*70 | Bluetooth |

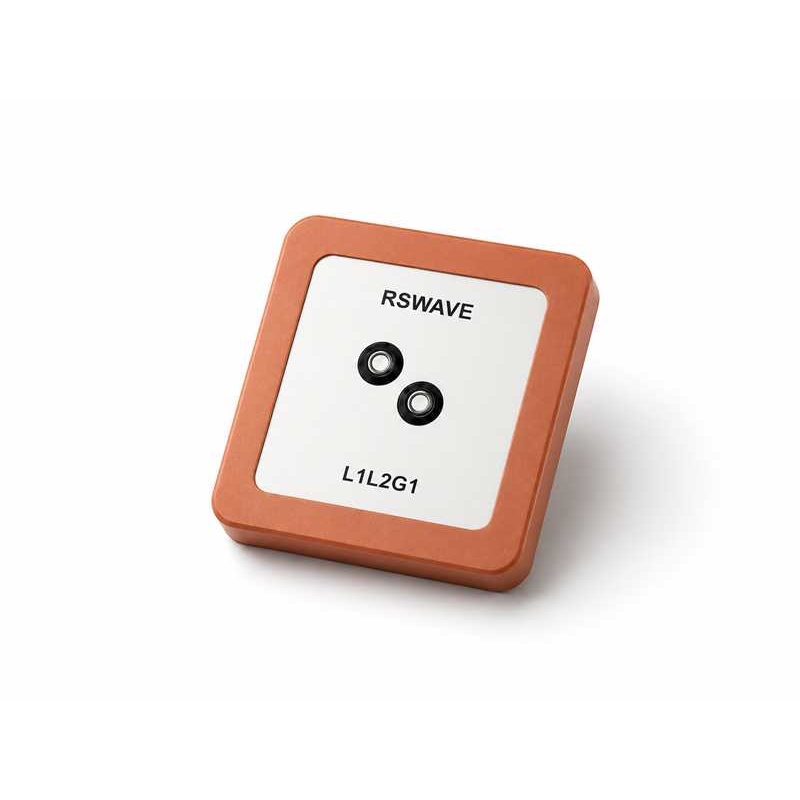

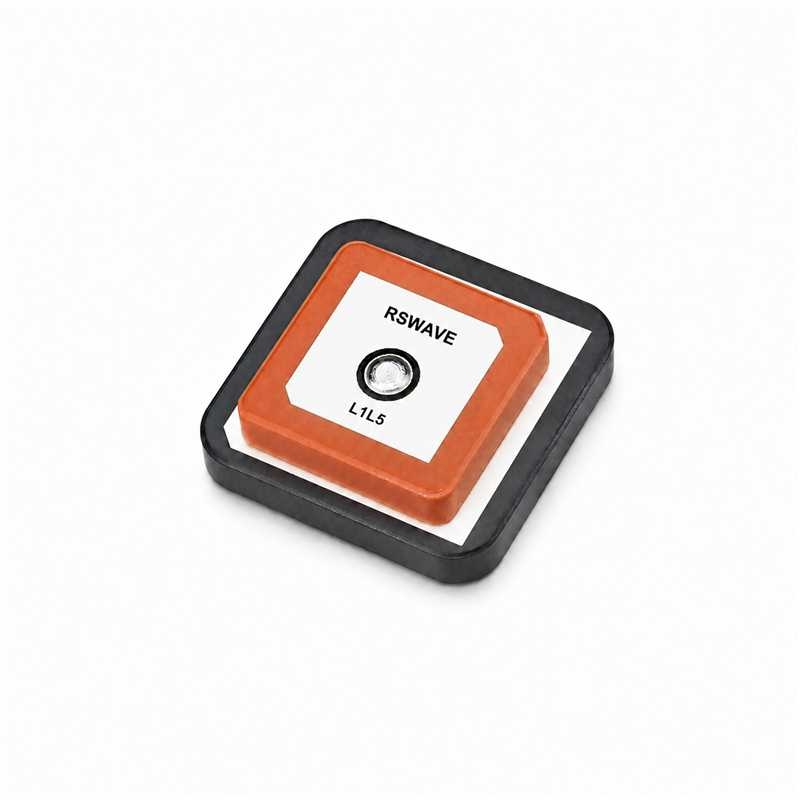

| RS1176-1575S20-15T8A | 20*20+15*15 | 1176 & 1575 | - | 2.0 | 1.0(1176) 1.0(1575) | 70*70 | GPSL1+L5 |
| RS1176-1575S25-18T8A | 25*25+18*18 | 1176 & 1575 | - | 2.0 | 2.0(1176) 2.0(1575) | 70*70 | GPSL1+L5 |
| RS1176-1575S35-25T8A | 35*35+25*25 | 1176 & 1575 | - | 2.0 | 3.0(1176) 4.0(1575) | 70*70 | GPSL1+L5 |
| RS1176-1575S38-25T8A | 38*38+25*25 | 1176 & 1575 | - | 2.0 | 4.0(1176) 5.0(1575) | 70*70 | GPSL1+L5 |
| RS1176-1575S47-41T8A | 47*47+41*41 | 1176 & 1575 | - | 2.0 | 5.0(1176) 6.0(1575) | 70*70 | GPSL1+L5 |
| RS1176-1575S50-40T8A | 50*50+40*40 | 1176 & 1575 | - | 2.0 | 5.5(1176) 6.5(1575) | 70*70 | GPSL1+L5 |
The thickness or external dimensions of the antenna and other application frequencies can be customized. Here, only some products are displayed for reference. If the product you are looking for is not listed in this table, you can contact us by email.
