GPSL1L5 Antenna（RAT-105）

Our core advantages:
1. Internally uses our own layered double-layer ceramic technology
2. Low noise, high sensitivity
3. Dual-frequency positioning, high positioning accuracy
4. Wide compatibility, adaptable to more systems
5. Customizable products for customers

Appurtenance:

Download Datasheet:

Introduction

Features of GPSL1L5 Antenna

The RAT-105 Multi-Band GNSS Active Antenna is engineered for reliable and high-precision satellite positioning across multiple global navigation systems, including GPS, BeiDou (BDS), and Galileo. Supporting L1/B1/E1 and L5/B2a/E5a frequency bands, it features a high-performance low-noise amplifier (LNA), RHCP polarization, excellent impedance matching, and low VSWR for superior signal reception in challenging environments. Its compact magnetic-mount design, low power consumption, and stable performance over a wide operating temperature range make it an ideal choice for demanding GNSS applications.

Typical Applications

The RAT-105 is widely used in high-precision GNSS positioning, RTK surveying systems, autonomous vehicles, precision agriculture, UAV navigation, fleet management, intelligent transportation systems (ITS), construction machinery, and IoT tracking devices. It is also suitable for industrial automation, timing synchronization, and other applications requiring stable multi-constellation GNSS signal reception and reliable positioning performance.

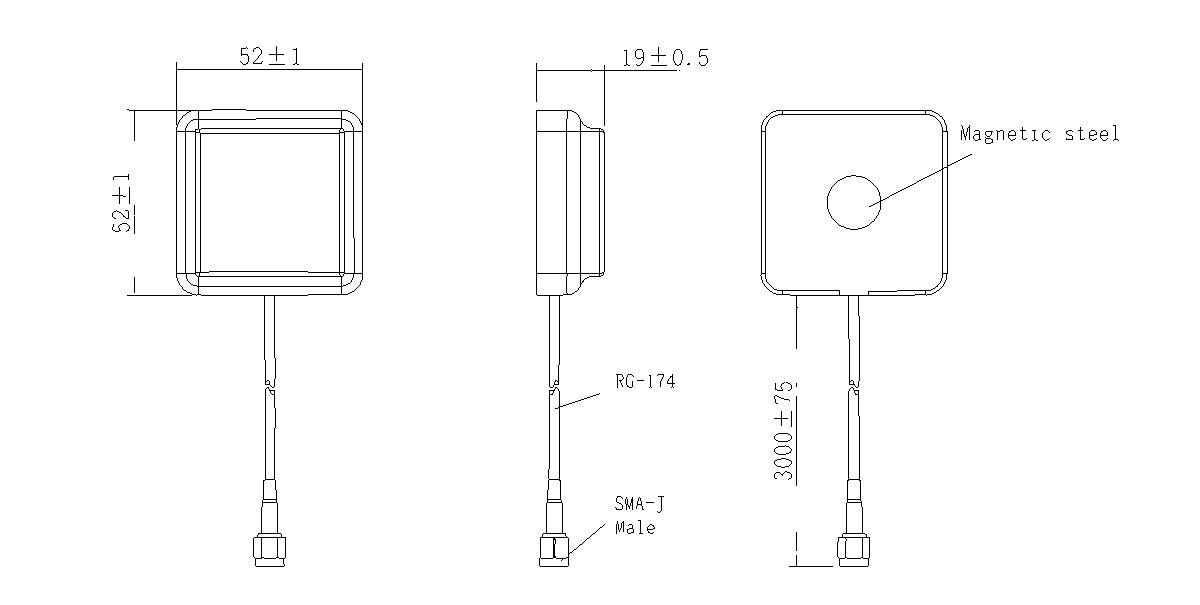

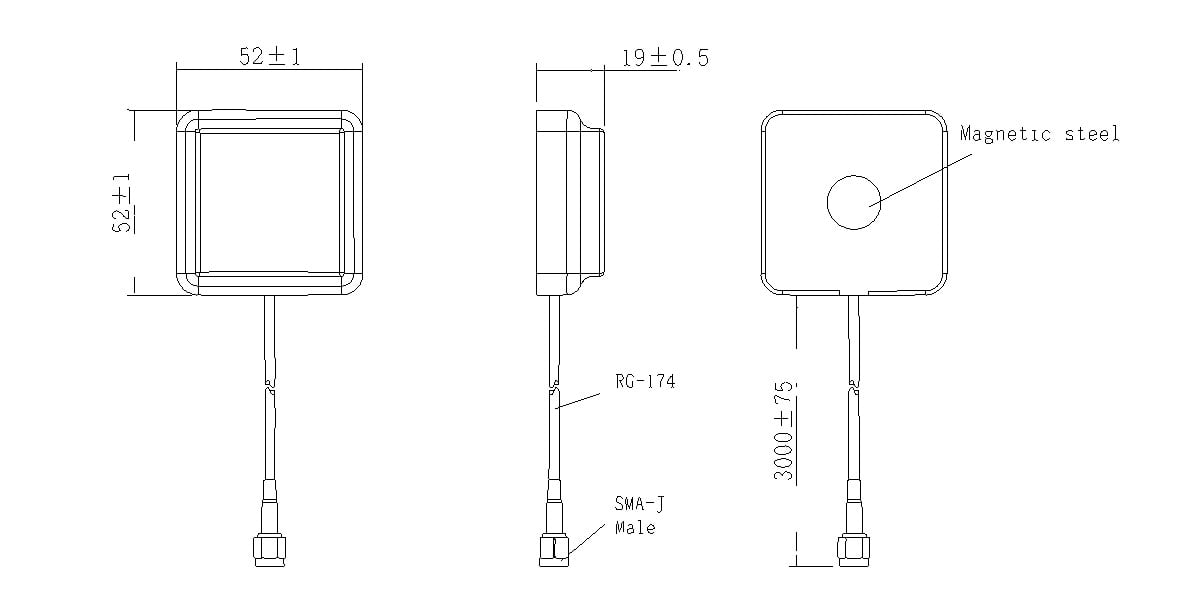

Technical parameters

ANTENNA
Frequency Range	B1I,B1c,L1c	B1a,L5
Band Width	1575.42±16.368MHz	1176.45±10.23MHz
Return Loss@Fo	＜-10dB	＜-10dB
Band Width@RL=-10dB	＞5MHz	＞5MHz
Peak Gain@Zenith	3.0dBic	2.5dBic
Impedance	50Ω
Polarization	RHCP
LNA
Frequency Range	L1,B1,E1;L5,B2a,E5a,B2b,L2
DC Voltage	3.3V(typ)
DC current	<16mA
Noise Figure	Typical:1.0dB
LNA Gain	L1/B1:29dB±2dB,	L5/B2a:27dB±2dB
VSWR	<2.0
Operating Temp	-20℃~80℃ 10%~95%RH
Storage Temp	-25℃~85℃ 10%~95%RH
Humidity	95% RH Non-condensing @ 65℃
