Our core advantages:
1. Low loss achieved using high Q-factor resonators
2. Smaller size and lighter weight achieved using high dielectric constant materials
3. Excellent temperature stability, suitable for surface mounting
4. Frequency range: 400MHz-6000MHz
5. Customizable products available
6. Strong simulation and design capabilities, enabling quick response to customer needs
Microwave Dielectric Ceramic Duplexer Product Introduction:
The microwave dielectric ceramic duplexer is a passive RF device that utilizes high-Q, low-loss microwave dielectric ceramics as the core resonant medium, integrating both transmit and receive filtering channels. It enables the sharing of a single antenna for both transmission and reception, providing simultaneous signal isolation at the same frequency without interference. It features a small size, stable performance, and high integration, making it a core component in RF front-end systems.
Microwave dielectric ceramic duplexers are widely used in: IoT terminals, industrial communications, base station equipment, automotive electronics, portable communication devices, and satellite navigation and communication.
Technical parameters

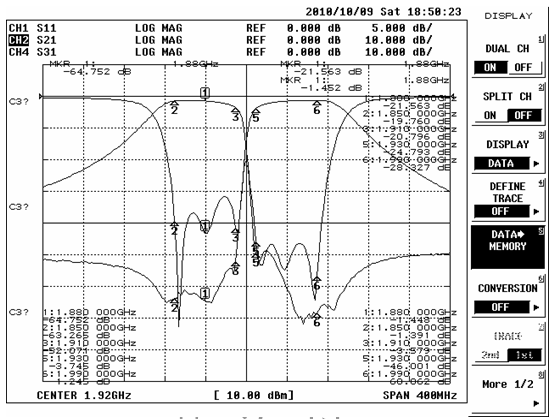

| Part Number | Center Frequency | Bandwidth | Insertion Loss | VSWR | Attenuation | Size | Applications | |
| (MHz) | (MHz)min | (dB)max | max | (dB)min(MHz) | W*H*L(mm) | |||
| RMP10C409/462F5NCA | Tx | 409 | 5 | 1.5 | 1.5 | 30@±2.5 | 42*21*9 | Rail |
| Rx | 462 | 5 | 1.5 | 1.5 | 30@±2.5 | |||
| RMD8C830/875F10FCA | Tx | 830 | 10 | 2.5 | 1.7 | 45@fr±5 | 24x10x4.1 | CHINA CDMA |
| Rx | 875 | 10 | 3.2 | 1.7 | 50@fr±5 | |||
| RMP10C830/875F10NCA | Tx | 830 | 10 | 1.8 | 1.5 | 60@fr±5 | 42*18*9.5 | CDMA |
| Rx | 875 | 10 | 1.8 | 1.5 | 60@fr±5 | |||
| RAD7A836/881F25DCA | Tx | 836 | 25 | 2.6 | 1.7 | 40@fr±12.5 | 23*15*4.5 | KOREA CDMA |
| Rx | 881 | 25 | 3.7 | 1.8 | 50@fr±12.5 | |||
| RMD10C902/947F25NCA | Tx | 902.5 | 25 | 2.5 | 1.5 | 55@fr±12.5 | 42*18*9.5 | GSM |
| Rx | 947.5 | 25 | 2.5 | 1.5 | 55@fr±12.5 | |||
| RAE6A902/947F25DCA | Tx | 902.5 | 25 | 2.4 | 1.7 | 32@fr±12.5 | 21*15*4.5 | GSM |
| Rx | 947.5 | 25 | 3.2 | 1.8 | 30@fr±12.5 | |||
| RAD4A1227/1575S20KCA | Tx | 1227 | 20 | 1.0 | 1.7 | 40@fr±10 | 26*15*7.5 | GPS |
| Rx | 1575 | 20 | 1.0 | 1.7 | 40@fr±10 | |||
| RAD4A1229/1584F150/50DCA | Tx | 1229 | 150 | 1.0 | 1.5 | 20@fr±25 | 15*15*4 | BDS |
| Rx | 1584 | 50 | 1.0 | 1.5 | 30@fr±75 | |||
| RMP10C1732/1827F45NCF | Tx | 1732 | 45 | 2.3 | 1.5 | 50@fr±22.5 | 42*17.5*9.5 | DCS |
| Rx | 1827 | 45 | 2.3 | 1.5 | 50@fr±22.5 | |||
| RMD10C1747/1842F75FCA | Tx | 1747.5 | 75 | 3.2 | 1.5 | 30@fr±37.5 | 29*7*7.5 | DCS |
| Rx | 1842.5 | 75 | 3.5 | 1.5 | 30@fr±37.5 | |||
| RAD7A1880/1960F60DCA | Tx | 1880 | 60 | 2.6 | 1.8 | 25@fr±30 | 23*13*4.5 | US-PCS |
| Rx | 1960 | 60 | 3.5 | 1.8 | 22@fr±30 | |||
| RMP10C1995/2185F30FCA | Tx | 1995 | 30 | 1.5 | 1.5 | 60@fr±15 | 28*11.3*5.5 | BDS |
| Rx | 2185 | 30 | 1.5 | 1.5 | 60@fr±15 | |||
| RAD7B1595/2492F50/40FCA | Tx | 1595 | 50 | 2.0 | 1.5 | 40@fr±70 | 30*13.8*5.5 | GPS/BDS |
| Rx | 2492 | 40 | 2.0 | 1.5 | 40@fr±70 | |||
| RAD8A3430/3530F60FCA | Tx | 3430 | 60 | 6.5 | 2.0 | 18@fr±30 | 36*44*5.5 | MMDS |
| Rx | 3530 | 60 | 6.5 | 2.0 | 18@fr±30 | |||
| RMP10C3483/3583F33FCA | Tx | 3483 | 33 | 2.5 | 1.5 | 50@fr±16.5 | 30*8.8*5 | Wireless-LAN |
| Rx | 3583 | 33 | 2.5 | 1.5 | 50@fr±16.5 | |||
The form factor and other application frequencies of microwave dielectric ceramic duplexers can be customized. Here, only some products are displayed for reference. If the product you are looking for is not listed in this table, you can contact us by email.
