Quadrifilar Helical Antenna Product Introduction:
The RAT-830S adopts a four-arm helical structure design. Compared with traditional antennas, it has superior gain performance and wide-angle circular polarization characteristics, enabling it to receive more low-tilt satellite signals. It is particularly suitable for terminal products such as unmanned aerial vehicles, handheld devices, and wearable devices. It supports simultaneous transmission of DC bias and RF signals through a single SMA interface. All antennas have undergone 100% RF testing.
Technical parameters
| Item | Frequency Range | Typ |
| Gain(dB) | GPS L1 | 2 |
| GPS L2 | 2 | |
| GPS L5 | -2 | |
| GLONASS G1 | -1.5 | |
| GLONASS G2 | -1 | |
| BDS B1 | 1.5 | |
| BDS B2a | -2 | |
| BDS B2b | 1 | |
| BDS B3i | -2 | |
| GALILEO E1 | 2 | |
| GALILEO E5a | -2 | |
| GALILEO E5b | 1 | |
| Polarization | RHCP | |
| Covering Range(°） | 360 | |
| VSWR | 2（max) | |
| Pear Axial Ratio(dB) | 3(max) | |
| Impedance | 50Ω | |
| Gain(dB) | 28 | |
| Noise Figure（dB） | 1.5 | |
| Voltage（V) | 3.3～16 | |
| Current(mA) | 13 | |
| Environment Condition | ||
| Operating Temp | -40℃～80℃ | |
| Storage Temp | -40℃～85℃ | |
| Weight | 15g | |
| Waterproof | IP67 | |

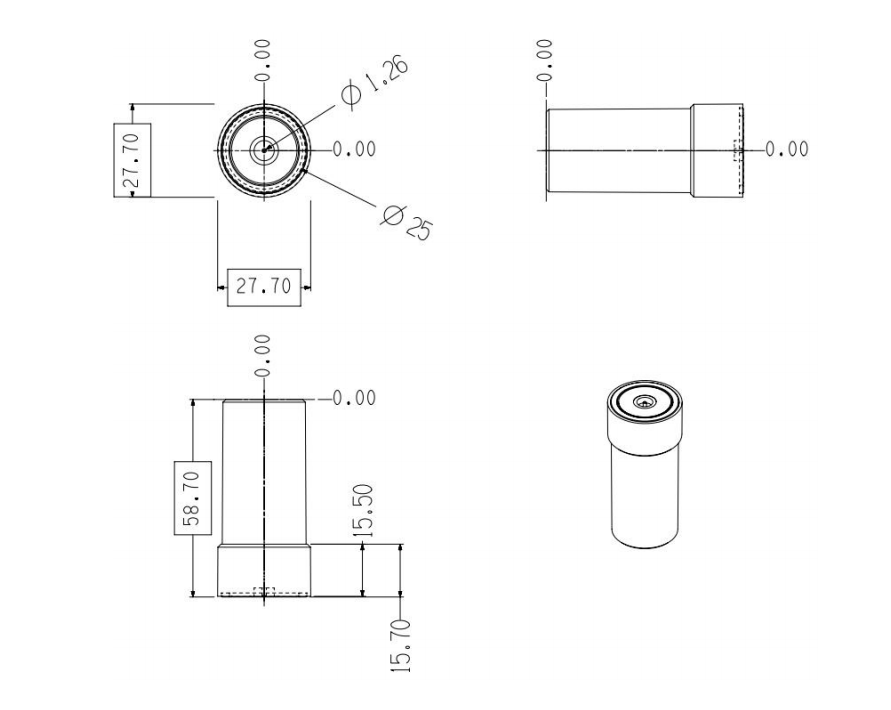

Structural dimensions (±0.3mm)
