LC Band-pass Filter（RSL-B10-2CA）

Product Introduction:

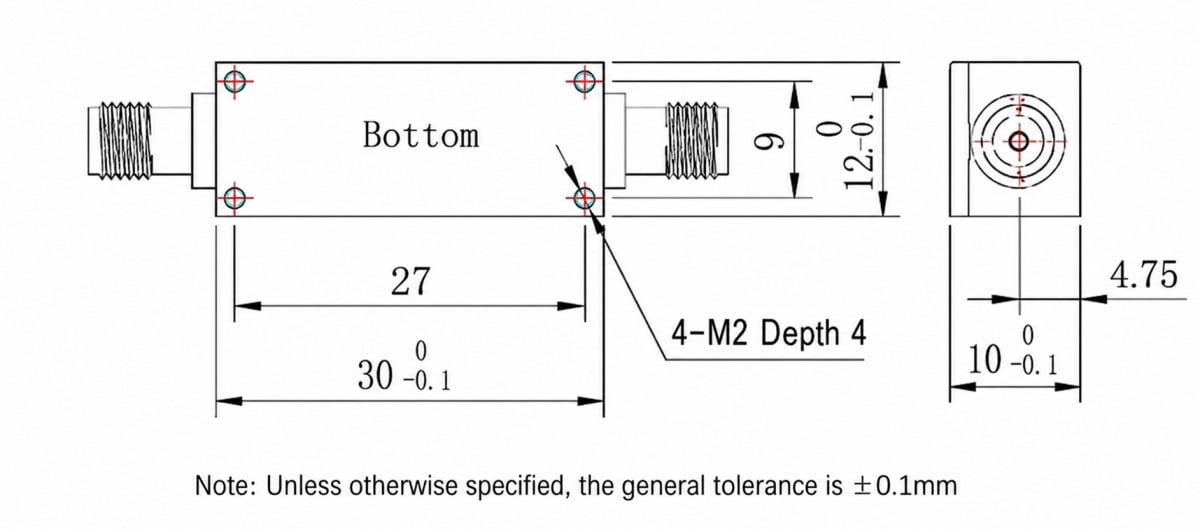

RSL-B10-2CA is a compact 10MHz bandpass filter designed for precise RF signal selection, noise suppression, and stable frequency filtering in professional communication and test systems. With a center frequency of 10MHz, bandwidth of ≥2MHz, insertion loss of ≤1.0dB, and high out-of-band attenuation of ≥75dB at fo±15MHz, this filter helps improve signal purity and reduce unwanted interference. The product features a 50Ω impedance, 2-SMA-K connectors, a durable metal housing, and a compact size of 30×12×10mm, making it suitable for space-limited RF and microwave system integration.

Typical applications include 10MHz reference clock systems, GPSDO, OCXO and rubidium frequency standards, signal generators, frequency counters, spectrum analyzer front ends, PLL/DDS signal chains, RF communication equipment, laboratory test platforms, industrial control systems, and other electronic systems requiring reliable 10MHz signal filtering and interference suppression.

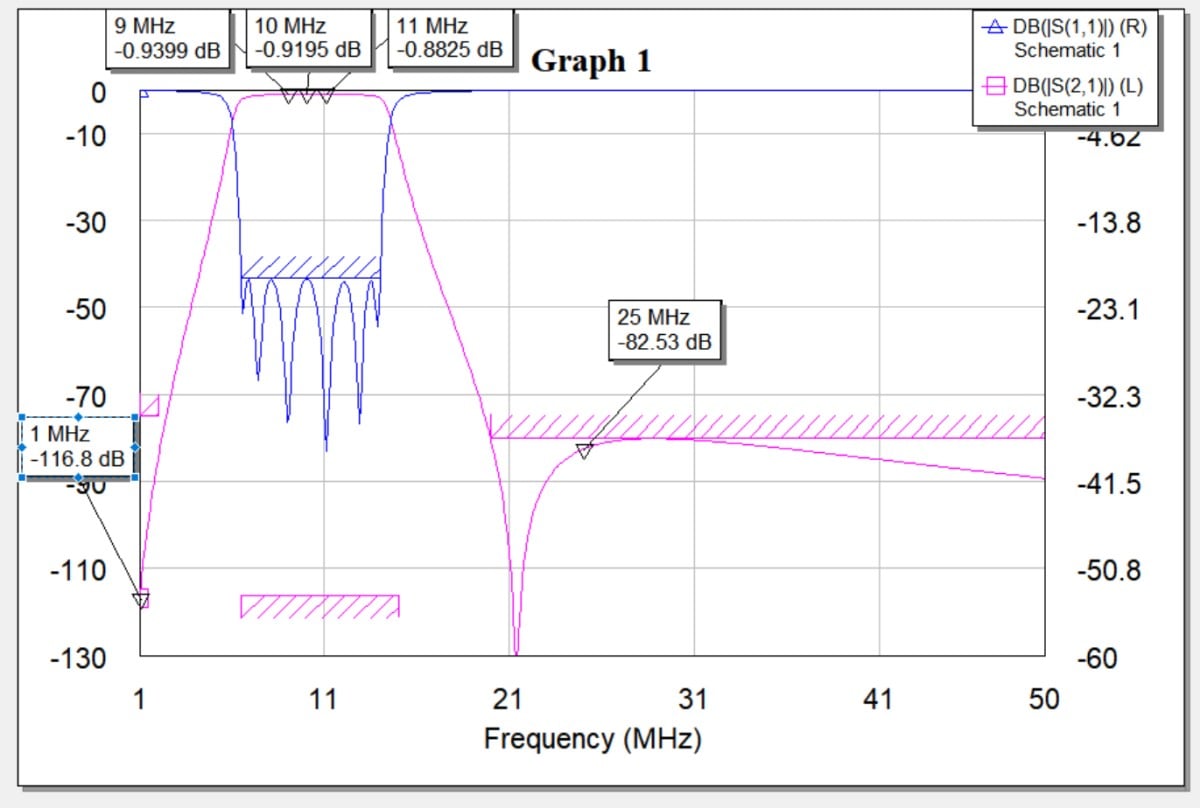

Technical parameters
