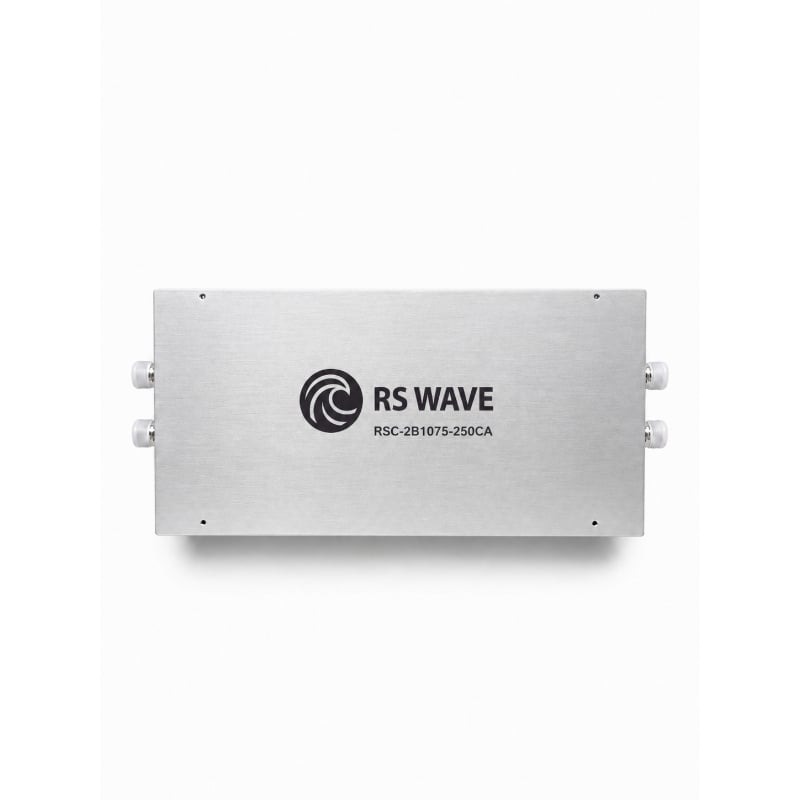

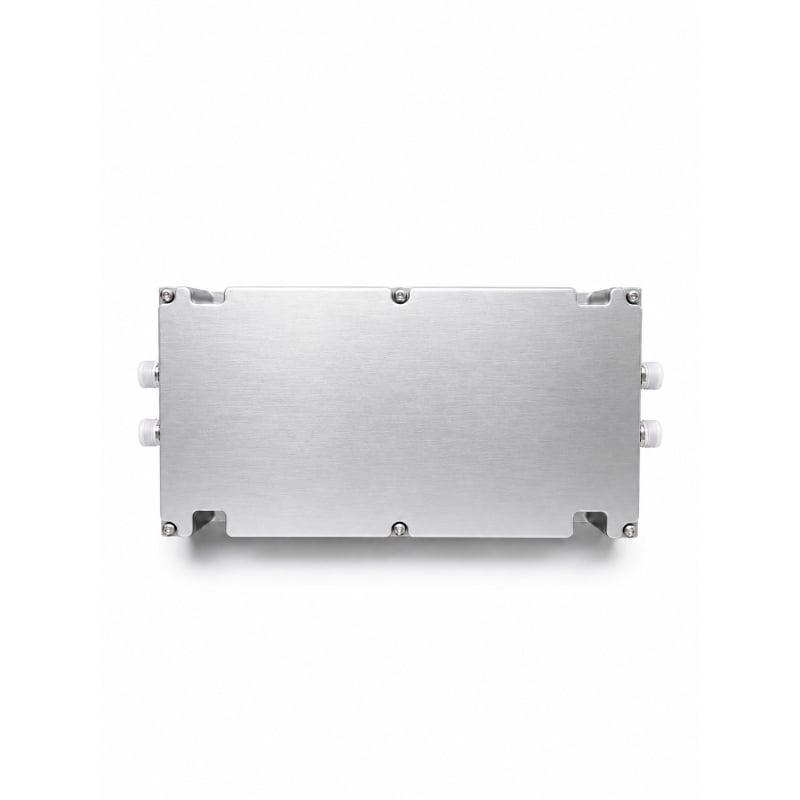

Dual-channel Cavity Filter（RSC-2B1075-250CA)

Product Introduction:

The RSC-2B1075-250CA is a high-performance 2-channel cavity bandpass filter designed for RF communication systems operating in the 950–1200 MHz frequency range with a 250 MHz bandwidth. Featuring low insertion loss (≤1.2 dB), excellent VSWR (≤1.5), and high out-of-band attenuation of up to 40 dB, it delivers outstanding signal selectivity while minimizing transmission loss. With a 1000 W peak power handling capability, 50 Ω impedance, and reliable operation from -55°C to +70°C, this filter provides stable, long-term performance in demanding indoor and outdoor RF environments.

Typical Applications

This RF cavity bandpass filter is widely used in wireless communication infrastructure, base stations, RF repeaters, public safety communication networks, broadcast systems, test and measurement equipment, and industrial RF applications. It is an ideal solution for reducing unwanted signals and interference, improving system isolation, and enhancing overall signal integrity in high-power RF transmission and receiving systems, making it suitable for OEM integration and custom communication projects.

Technical parameters
