LC Band-pass Filter（RSL-B100-2CA）

Product Introduction:

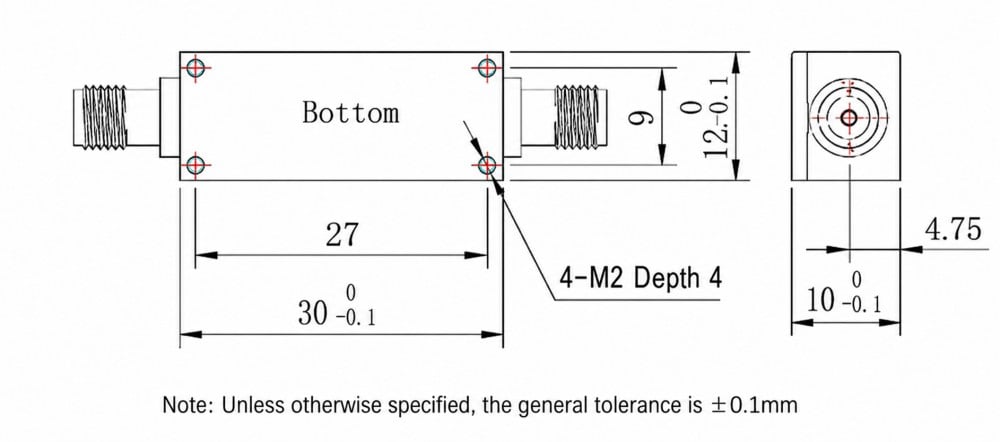

The RSL-B100-2CA 100MHz RF bandpass filter is designed for stable and precise signal selection in professional RF and communication systems. With a center frequency of 100MHz, bandwidth of ≥2MHz, low insertion loss of ≤1.0dB, ripple below 1.5dB, and high attenuation of ≥75dB at 200MHz, this compact SMA RF filter delivers excellent passband performance and strong out-of-band rejection. Its 50Ω impedance, 2x SMA-K interface, rugged operating temperature range of -40°C to +85°C, and compact 30 × 12 × 10mm size make it ideal for reliable integration into space-limited RF modules and test systems.

This 100MHz bandpass filter is widely suitable for RF front-end filtering, radio communication equipment, signal monitoring systems, telemetry devices, laboratory test instruments, industrial RF electronics, and customized wireless communication applications. By effectively isolating the target 100MHz signal while suppressing unwanted harmonic and interference signals, the RSL-B100-2CA helps improve signal quality, system stability, and measurement accuracy in demanding B2B RF and microwave environments.

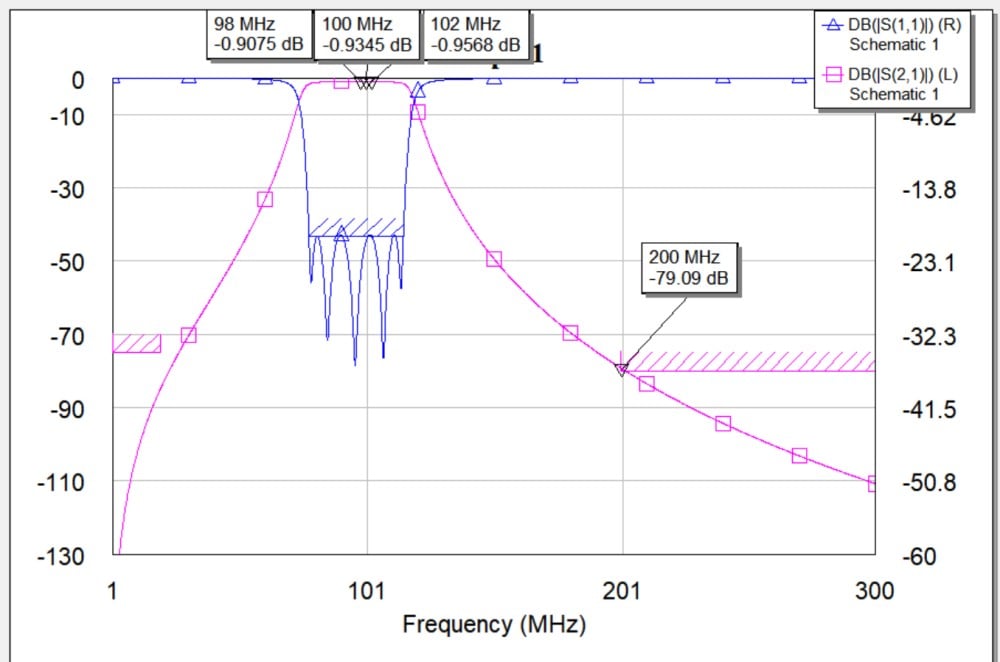

Technical parameters
