Introduction
In the evolving landscape of Global Navigation Satellite System (GNSS) technology, the demand for reliable, continuous, and high-precision positioning, navigation, and timing (PNT) solutions is paramount, especially in challenging electromagnetic environments. The 16-Array Controlled Reception Pattern Antenna (CRPA) stands as a pinnacle of innovation in this field, designed to overcome the significant hurdle of radio frequency interference (RFI) and jamming. Leveraging state-of-the-art digital control and sophisticated beamforming algorithms, this system ensures the integrity and availability of GNSS signals. This article provides a detailed exploration of the 16-array CRPA, delving into its core technologies, operational principles, and the distinct advantages offered by its two primary physical configurations: the square array and the circular array.
Core Technology: Advanced Digital Control and Beamforming
At the heart of the 16-array CRPA's superior performance lies its advanced digital controller and novel beamforming technology. Unlike conventional antennas with a fixed reception pattern, a CRPA is an adaptive antenna system. It consists of multiple antenna elements—in this case, sixteen—whose individual outputs are intelligently combined and processed in real-time.
• Interference Mitigation Principle: The primary function of the CRPA is to identify and nullify interference sources. The digital controller continuously samples the signals from all 16 elements. By analyzing the phase and amplitude differences of incoming signals across the array, it can accurately determine the direction of arrival (DOA) of both the desired GNSS signals and unwanted interferers. Using complex algorithms, the controller calculates a unique set of weights for each element. These weights adjust the phase and amplitude of the signals, effectively creating deep "nulls" in the antenna's reception pattern directed towards the interference sources. This process significantly attenuates the jamming signals while preserving or even enhancing the gain towards the GNSS satellites.
• Multi-Source Jamming Resilience: A key advantage of a 16-element system is its ability to handle multiple simultaneous interference sources. The degrees of freedom provided by 16 elements allow the system to generate multiple independent nulls. This means it can effectively suppress several jammers operating from different geographical locations at the same time, a scenario common in modern electronic warfare or congested urban settings. This multi-source cancellation capability is a substantial upgrade over simpler systems with fewer elements, ensuring operational continuity even in highly aggressive spectral environments.
• Beam Steering and Signal Enhancement: Beyond just nulling, the beamforming technology can also be used to steer high-gain beams towards specific GNSS satellites. This not only improves the signal-to-noise ratio (SNR) for weaker signals but also helps in mitigating multipath effects—where signals bounce off buildings or the ground before reaching the antenna, causing positioning errors. By preferentially receiving the direct signal path, the 16-array CRPA delivers more accurate and reliable PNT data.
Physical Array Configurations: Tailoring the Solution
The 16-array CRPA is available in two distinct physical configurations, each engineered with specific benefits to suit different application requirements: the square array and the circular array.
The Square Array Configuration: Structure and Scalability
The square array arranges its 16 elements in a 4x4 grid pattern. This configuration offers several practical advantages:
• Regular Structure and Modular Design: The symmetrical and grid-based layout is inherently modular. This simplifies the design and manufacturing process, often leading to more predictable performance and potentially lower production costs. The regularity also makes integration into platforms with rectangular form factors—such as the roofs of ground vehicles, fixed infrastructure, or certain aircraft sections—more straightforward.
• Easier Installation and Expansion: The modular nature facilitates easier installation, as mounting points and physical interfaces can be standardized. Furthermore, this design philosophy allows for simpler system expansion or daisy-chaining in large-scale deployments where multiple systems might be needed, providing a scalable solution for complex defense or commercial networks.
• Optimized Performance for Planar Geometries: In scenarios where threats are expected primarily from the horizon, the square array can be highly effective. Its geometry allows for precise null placement along the principal axes (azimuth), making it exceptionally good at canceling interference from ground-based jammers.
The Circular Array Configuration: Balanced and Comprehensive Performance

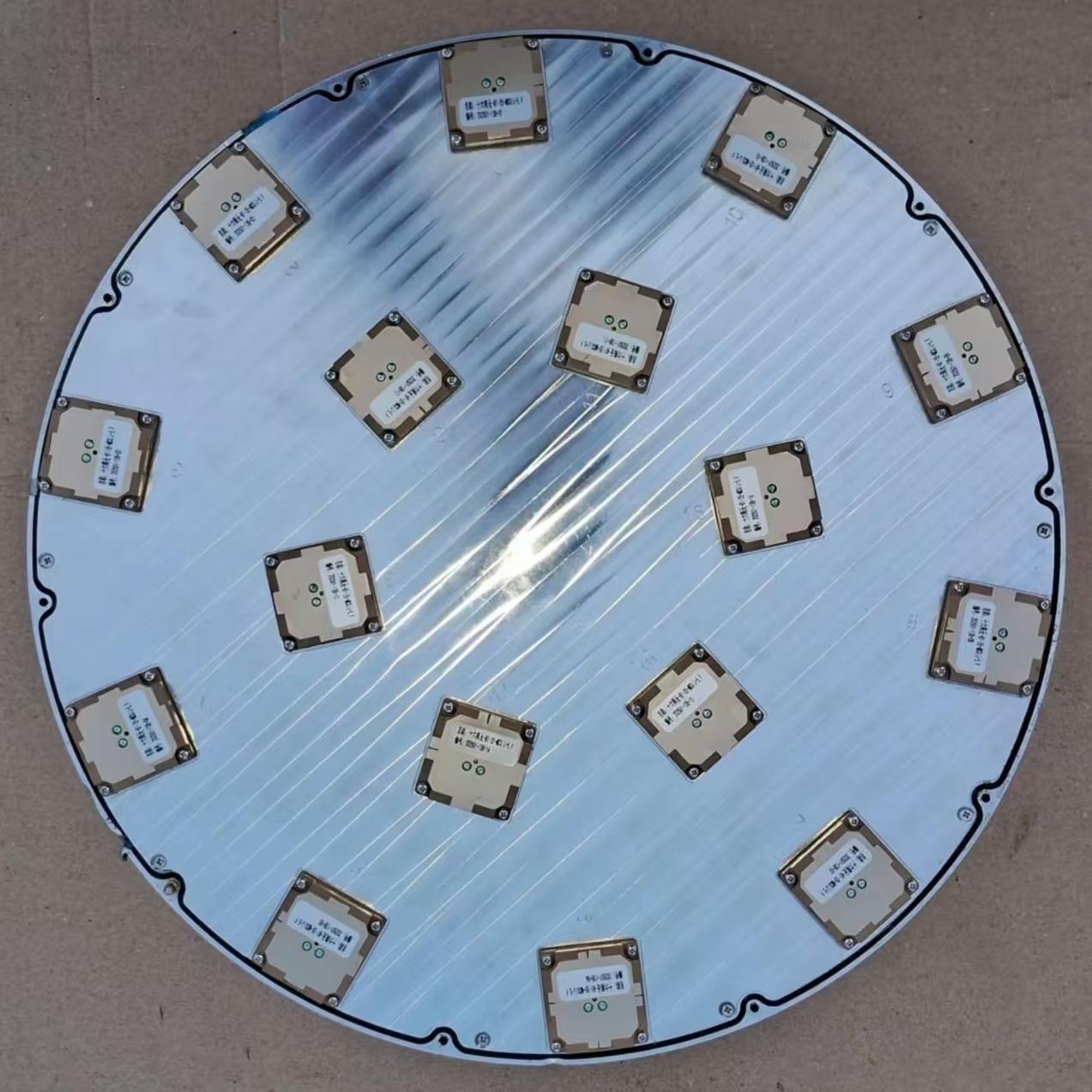

The circular array configuration arranges the 16 elements uniformly around the circumference of a circle, typically with one element at the center. This geometry is chosen for its superior performance characteristics:
• Balanced Coverage and Omnidirectional Consistency: The circular symmetry provides uniform antenna response in all azimuth directions (360 degrees). This results in more consistent and balanced interference nulling capabilities, regardless of the direction from which a jammer attacks. There are no inherent "weak spots" along specific axes, as can be the case with a square geometry.
• Comprehensive Anti-Interference Performance: The circular array excels in dynamic environments where the platform (e.g., an aircraft, ship, or satellite) is constantly changing its orientation, or when jammers are mobile. Its ability to form nulls with equal effectiveness in any horizontal direction ensures continuous protection. The central element, combined with the outer ring, can also aid in better elevation resolution, improving performance against low-elevation interferers or in complex signal environments.
• Superior Beamforming Flexibility: The circular arrangement often allows for more symmetrical and lower-sidelobe beam patterns when forming gains towards satellites. This can lead to slightly better multipath rejection and overall signal quality in multi-satellite tracking scenarios.
Comparative Summary and Application Scenarios
Choosing between the square and circular array depends on the specific operational needs:
• Choose the Square Array when the application prioritizes a modular, easily integrable design for platforms with rectangular mounting surfaces. It is ideal for fixed-site installations, ground vehicles, or situations where the threat environment is somewhat predictable and primarily planar. Its scalability is a significant advantage for large-scale, standardized deployments.
• Choose the Circular Array when the highest level of comprehensive, all-directional jamming protection is required. It is the preferred choice for highly dynamic platforms like aircraft, unmanned aerial vehicles (UAVs), naval vessels, and satellites, where the platform's maneuvers would otherwise compromise the performance of a less symmetrical array. Its balanced coverage ensures robust performance no matter the heading.
Conclusion
The 16-array CRPA represents a significant leap forward in resilient PNT technology. By harnessing the power of an advanced digital controller and sophisticated beamforming algorithms, it provides an unparalleled defense against multiple, simultaneous interference sources, guaranteeing the continuous operation of critical GNSS receivers. The availability of both square and circular array configurations further enhances its versatility, allowing system integrators to select the optimal solution based on structural, installation, and performance requirements. Whether ensuring the mission success of a military aircraft, the safe navigation of a commercial vessel, or the reliability of critical infrastructure, the 16-array CRPA stands as a robust and adaptable guardian of the GNSS spectrum.
